Description

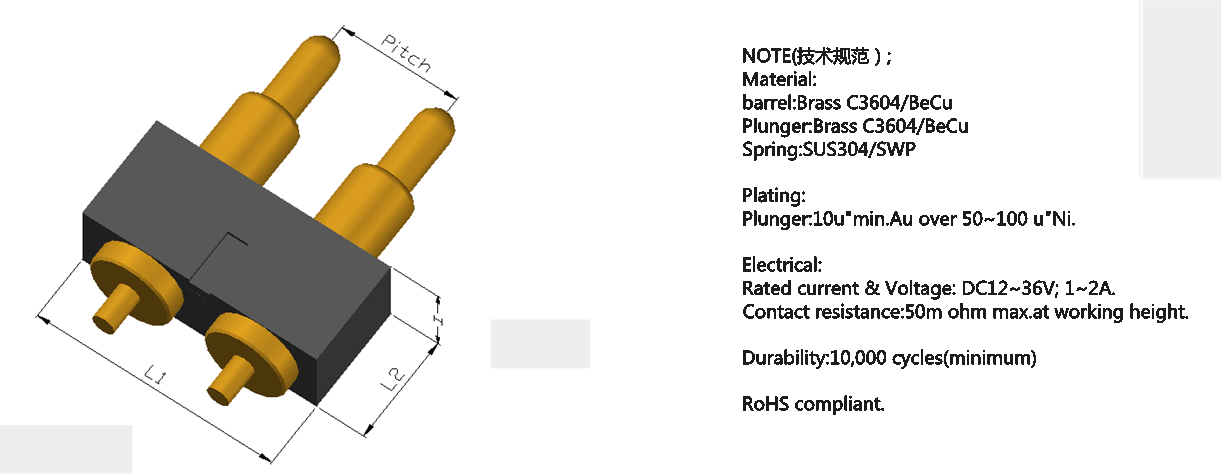

Through Hole Pogo Pin Connector Illustration
| （P/N） | L1 | L2 | H | Pitch | Pin | Cap | ROW | Remarks |
|---|---|---|---|---|---|---|---|---|
| ZH-P0321-05P250 | 12.8 | 2.5 | 2.2 | 2.5 | 5 | NO | SINGLE | / |
| ZH-P0322-05P254 | 12.8 | 2.5 | 2.2 | 2.54 | 5 | NO | SINGLE | / |
| ZH-P0374-05P250 | 22 | 4 | 3.65 | 2.5 | 5 | NO | SINGLE | ABNORMAL |
| ZH-P0558-05P250 | 12.8 | 2.5 | 2.2 | 2.5 | 5 | NO | SINGLE | / |
| ZH-P0609-06P250 | 15.1 | 2.5 | 1.7 | 2.5 | 6 | NO | SINGLE | / |
| ZH-P0616-06P250 | 15.2 | 2.5 | 1.7 | 2.5 | 6 | NO | SINGLE | ABNORMAL |
| ZH-P0680-05P200 | 11.4 | 2.5 | 4.55 | 2 | 5 | NO | SINGLE | RIGHT ANGLE |
| ZH-P0683-05P200 | 11.2 | 2.8 | 3.3 | 2 | 5 | YES | SINGLE | / |

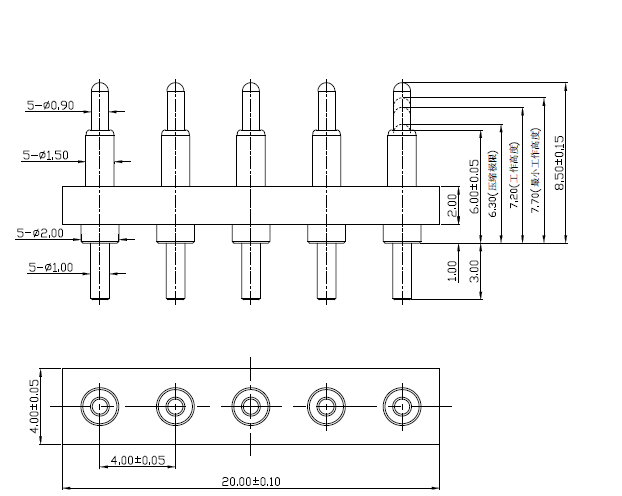

| ZH-P0797-05P400 | 20 | 4 | 2 | 4 | 5 | NO | SINGLE | / |
| ZH-P0875-05P250 | 22 | 4 | 3.65 | 2.5 | 5 | NO | SINGLE | ABNORMAL |
| ZH-P0892-2X5P250 | 17.5 | 4.7 | 5 | 2.5 | 5 | NO | DOUBLE | / |
| PG-WD1F-5P-002-V0084 | 10 | 3.25 | / | 2.5 | 5 | NO | SINGLE | RIGHT ANGLE |
| ZH-P0376-05P250 | 22 | 3.2 | 4 | 2.5 | 5 | NO | SINGLE | / |
| ZH-P0683-05P200CR | 11.2 | 3.3 | 2.8 | 2 | 5 | YES | SINGLE | / |
| ZH-P0652-2X3P254 | 8 | 1.5 | 5.1 | 2.54 | 6 | NO | SINGLE | / |
| ZH-P0658-05P185 | 13.65 | 4.9 | 5.5 | 1.85 | 5 | NO | SINGLE | / |
| ZH-P0659-05P185 | 18.95 | 7.8 | 5.3 | 1.85 | 5 | NO | SINGLE | RIGHT ANGLE |
| ZH-P5244-06P254 | 15.13 | 2.5 | 1.7 | 2.54 | 6 | NO | SINGLE | / |
| ZH-P1268-05P200R | 10.4 | 4.4 | 1.8 | 2 | 5 | YES | SINGLE | THICK BARREL |
| ZH-P1287-05P200R | 10.4 | 4.4 | 1.8 | 2 | 5 | YES | SINGLE | THICK BARREL |
- Key Features:
- Multi-Pin Design: Available in 5-pin and 6-pin configurations, ideal for complex electronic assemblies requiring multiple connections.
- Through-Hole Mounting: Ensures secure and stable connections, perfect for high-reliability applications.
- Durable Construction: Made from premium materials, including lead-free brass, copper, and SUS304, these connectors are built to withstand rigorous use and harsh environments.
- High Precision: Engineered to exacting standards, our through hole pogo pin connectors ensure reliable and consistent performance.
- Corrosion Resistant: Featuring protective coatings to resist corrosion, extending the lifespan of your devices.
- Easy Integration: Designed for straightforward installation, facilitating quick and efficient integration into your systems.
- Technical Specifications:
- Material: Lead-free brass or copper, SUS304.
- Pin Count: Available in 5-pin and 6-pin configurations.
- Current Capacity: Up to 5A.
- Operating Temperature: -40°C to +85°C.
- Dimensions: Available in various sizes and configurations to meet your specific requirements.
- Compliance: Meets all relevant industry standards and certifications.
- Applications:
- Consumer Electronics: Ideal for use in smartphones, tablets, and other portable devices.
- Automotive: Providing robust and reliable connections in automotive electronics.
- Medical Devices: Ensuring precise and dependable performance in critical medical applications.
- Industrial Equipment: Perfect for use in industrial control systems and machinery.
- Wearable Devices: Suitable for smartwatches, fitness trackers, and other compact wearable technology.
- Product Variants:
- 5 Pin Through Hole Pogo Pin Connectors: Suitable for applications requiring 5-point connections.
- 6 Pin Through Hole Pogo Pin Connectors: Suitable for applications requiring 6-point connections.
- Custom Through Hole Pogo Pin Connectors: Tailored solutions to meet specific application requirements.
- Customer Testimonials:
- John Doe, CTO of Tech Innovators: “The 5-pin and 6-pin through-hole pogo pin connectors have significantly improved our product’s reliability. Their precision and durability are exactly what we needed for our high-performance applications.”
- Why Choose Us: Focusing on quality and innovation, we provide 5-pin and 6-pin through-hole pogo-pin connectors that deliver exceptional performance and reliability. Whether developing consumer electronics or industrial equipment, our connectors are the perfect choice for your multi-pin connectivity needs.
Call to Action
- Discover Our 5-Pin and 6-Pin Through Hole Pogo Pin Connectors: Contact us today to learn more about our high-quality through-hole pogo pin connectors and how they can enhance your electronic designs.
